DuraPanel Titan

Compliant Aluminium fall restraint fencing at 2400mm post centres.

Titan safety fence has been designed in conjunction with engineers, civil contractors, local authorities, and industry specialists to provide a simple, effective system for protection on the top of retaining walls.

A stylish, strong solution, the simple lines of the Titan blend in seamlessly with any landscape. Suitable for subdivisions, cycleways, and all applications requiring compliant pedestrian barriers.

The Titan Fall Restraint System is designed with 2400mm post centres to make it easier when negotiating timber poles on a cantilever wall, and results in less time on site, fewer materials required, and lower install costs.

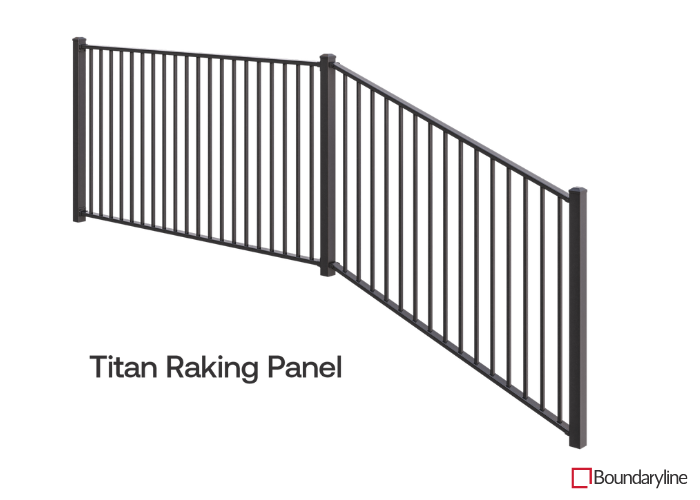

Rakeable panel available (rakeable up to 40°).

Features:

• Square verticals and rectangle horizontals for additional strength
• Producer Statement available for download
• Stocked gates available
• Custom gates or panels available to be fabricated
• To be used with 65x65mm posts
• Rakeable panel available (rakeable up to 40°)

Specifications:

Panel Height: 1200mm

Panel Length: 2330mm

Horizontal Rails: 50x25mm

Vertical Bars: 19x19mm

Post Size: 65x65mm

Rakeable Panel: 1200mm (rakeable up to 40°)

Colours:

• Black
